Scotchcast 3M Inline Resin Power Cable Splice kit 82-A1N, Up to 2 AWG Black

3M Scotchcast Inline Resin Power Cable Splice Kit 82-A1N is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1kV rated multiple conductor cables. Quickly and easily insulate and create a permanent watertight seal for use in weather-exposed or direct-burial locations without the need for heat or additional tools. Designed to not melt or run once cured and stable at elevated temperatures. Two-part closed mixing pouch simplifies mixing and pouring, generating its own heat to cure. Includes a mold body, pouring spouts, 23 electrical tape and No. 4N resin. UL listed for direct burial and submerged applications up to 600 V and 90 C. For use with UL listed connectors only. Applications: Replace or repair the jacket on both single and multi-core power cables, Insulate between conductors of multi-core splices operating up to 8kV, Seal the crotch or sheath when terminating multi-core cables. Resin Features: Excellent multi-purpose moisture sealing resin, Two-part closed mixing pouch simplifies mixing and pouring, Bonds to itself and to most modern cable jackets, Thermal setting; designed to not melt or run once cured,• Designed to be stable at elevated temperatures, Generates its own heat to cure, Tough and Oil resistant

• INSULATES AND SEALS: Unshielded, single conductor cables and multiple conductor cables
• ENGINEERED VERSATILITY: Make inline splices on 5 kV cables and multiple conductor cables through 1 kV
• SPLICE AND RE-JACKET: Designed to splice or re-jacket non-shielded portable power cables and portable cords

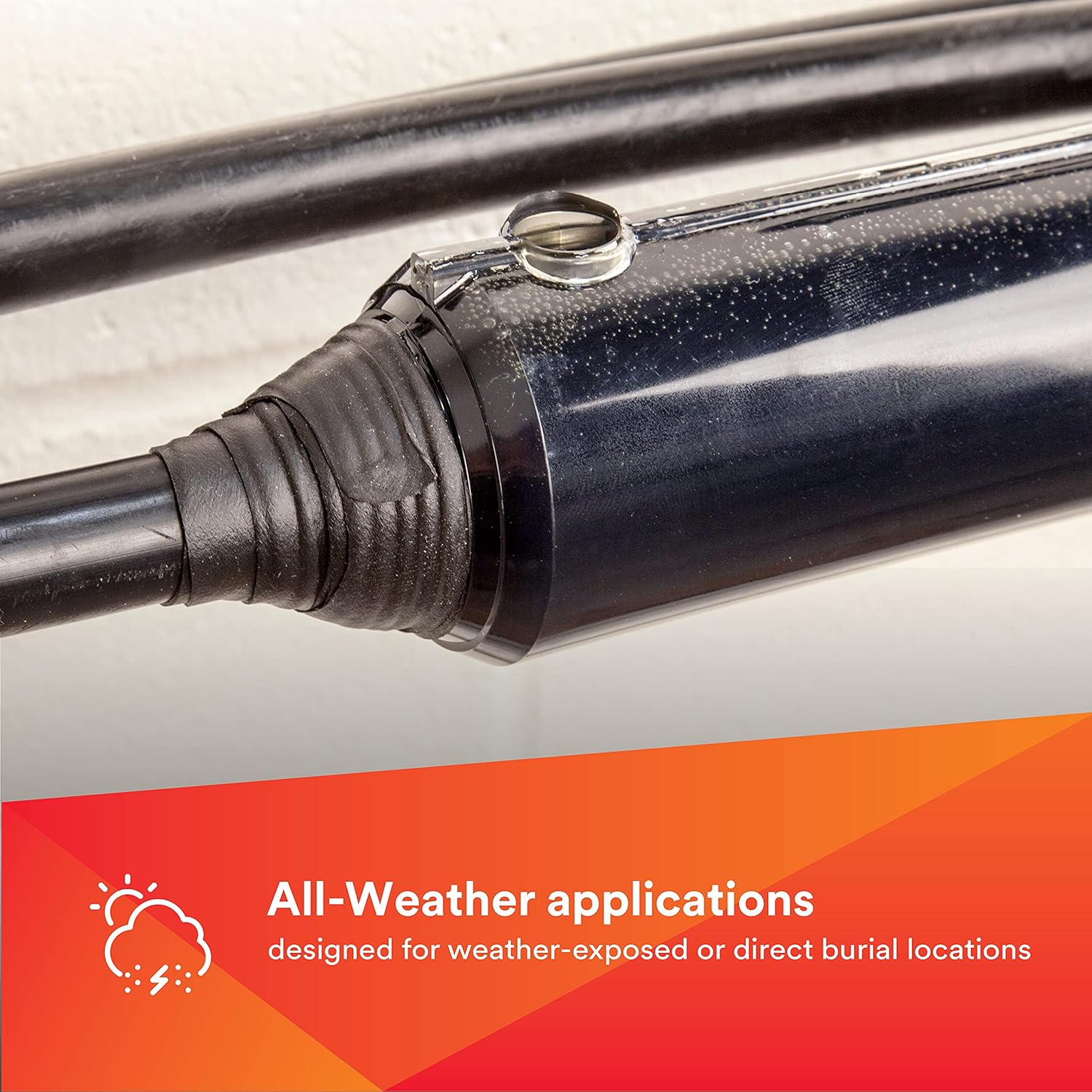

• DESIGNED FOR THE ELEMENTS: Designed for weather-exposed or direct burial locations
• For industrial/occupational use only. Not for consumer sale or use
