MayiESS Smart BMS 7-14S Automized Identify 24V 36V 48V 50A Continuous 150A Peak UART NTC Li-ion LiFePo4 Battery Smart Balanced Board for E-Bike 7S 8S 9S 10S 11S 12S 13S 14S

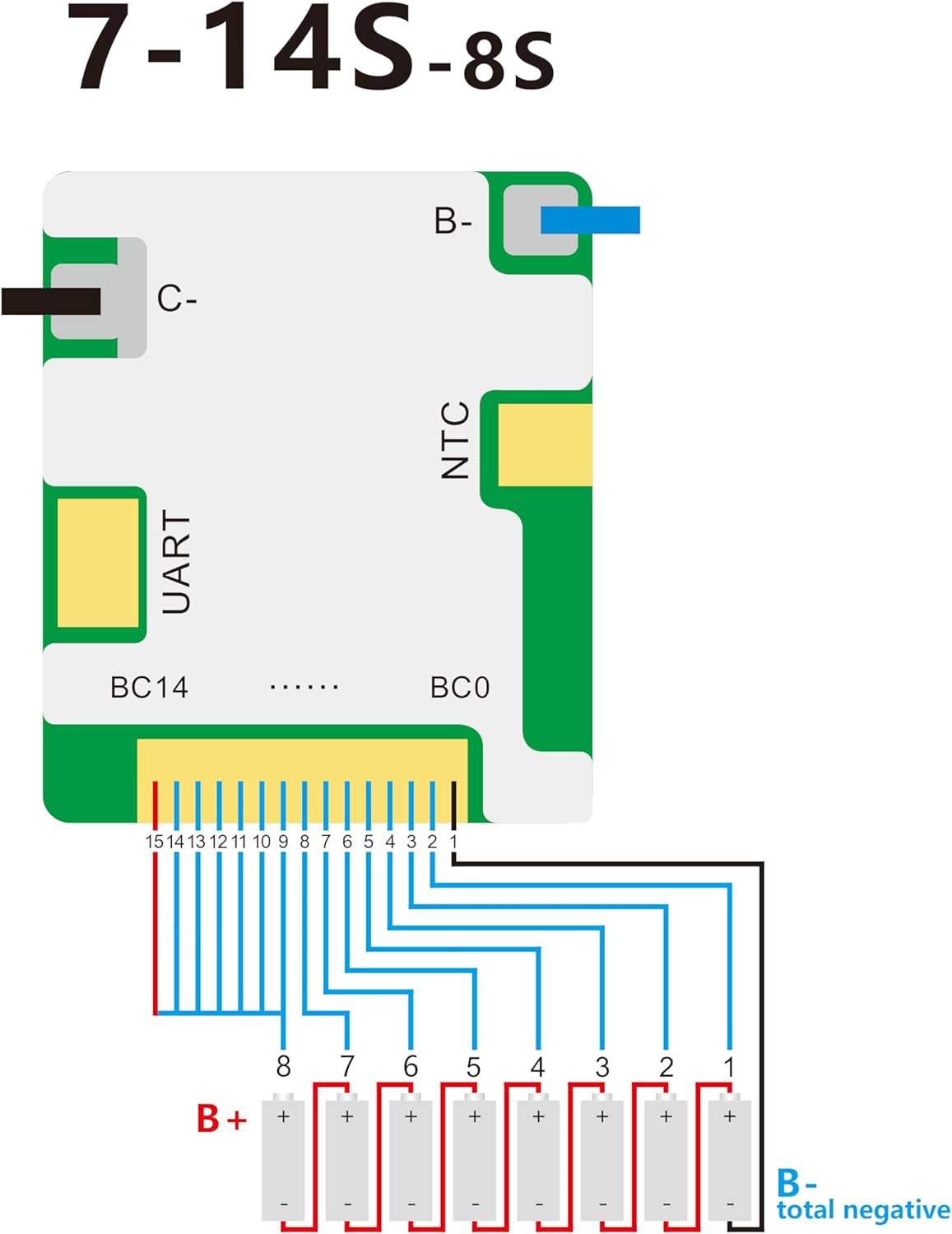

Phone-"Xiaoxiang BMS" ☆ IOS: Search it in the APP STORE ☆ Android: https://www.pgyer.com/Bzt1NOTE： ☆ Strictly forbidden to reversely connect the B- and C- cables of the BMS, forbidden to confuse wiring ☆ Wiring must start from B- to B+ and be connected in sequence ☆ Measure the voltage of each battery string with a multimeter to ensure the correct line sequence ☆ Connect B- of BMS to the total negative of Battery Before Pluging the sampling cable into the BMS, Otherwise, the board will be burnt ☆ Please operate in strict accordance with the instruction manual and the guidance of customer service personnel when installing the BMS. If the BMS does not work or is damaged due to misoperation without following the instructions and customer service instructions, customer need to pay for repair or replacementComputer-JIABAIDA Tools (UART) http://www.jiabaida.com/uploads/soft/xiaoxiangBMS.zip?spm=5261.im.0.0.7e0e4edfdzhzxA&file=xiaoxiangBMS.zip

• Support Number Of Strings：automatically identify strings number 7-14S. Size in:63*52*12mm. Continuous current 50A,peak current 150A continue 1S.
• Multiple Protection：Overcharge Protection; Overdischarge Protection; Overcurrent Protection; Short circuit
• Product IntroductionApplicable Battery Type：3.7v Li-ion/3.2v Lifepo4 Battery.
• Balance Model：Static/Charge balance. Balance Current:20-55mA. Temperature Sensor:1pc Internal,1pc External.
• Function Introduction：(1)BT-APP in Phone(xiaoxiangElectric App:://.jiabaida/appdown/index.html)Support Both IOS and Android version,can monitor and change the parameters. (need to be within the specified range)
• Application For：Electric scooter,Electric scooter,Electric bycicle,Electric Tools,ect.
