Caltric 41001 41007 41008 461663 46631 48127 482744 48924MA 760136 48168-01 48378-02 48926 48" 52" 61" 72" Deck Spindle & Pulley Compatible with Scag SCR48-25CH SCR48-27KA SCR52-25CH SCR52-27KA
Product details
| Management number | 210598868 | Release Date | 2026/04/02 | List Price | $36.00 | Model Number | 210598868 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

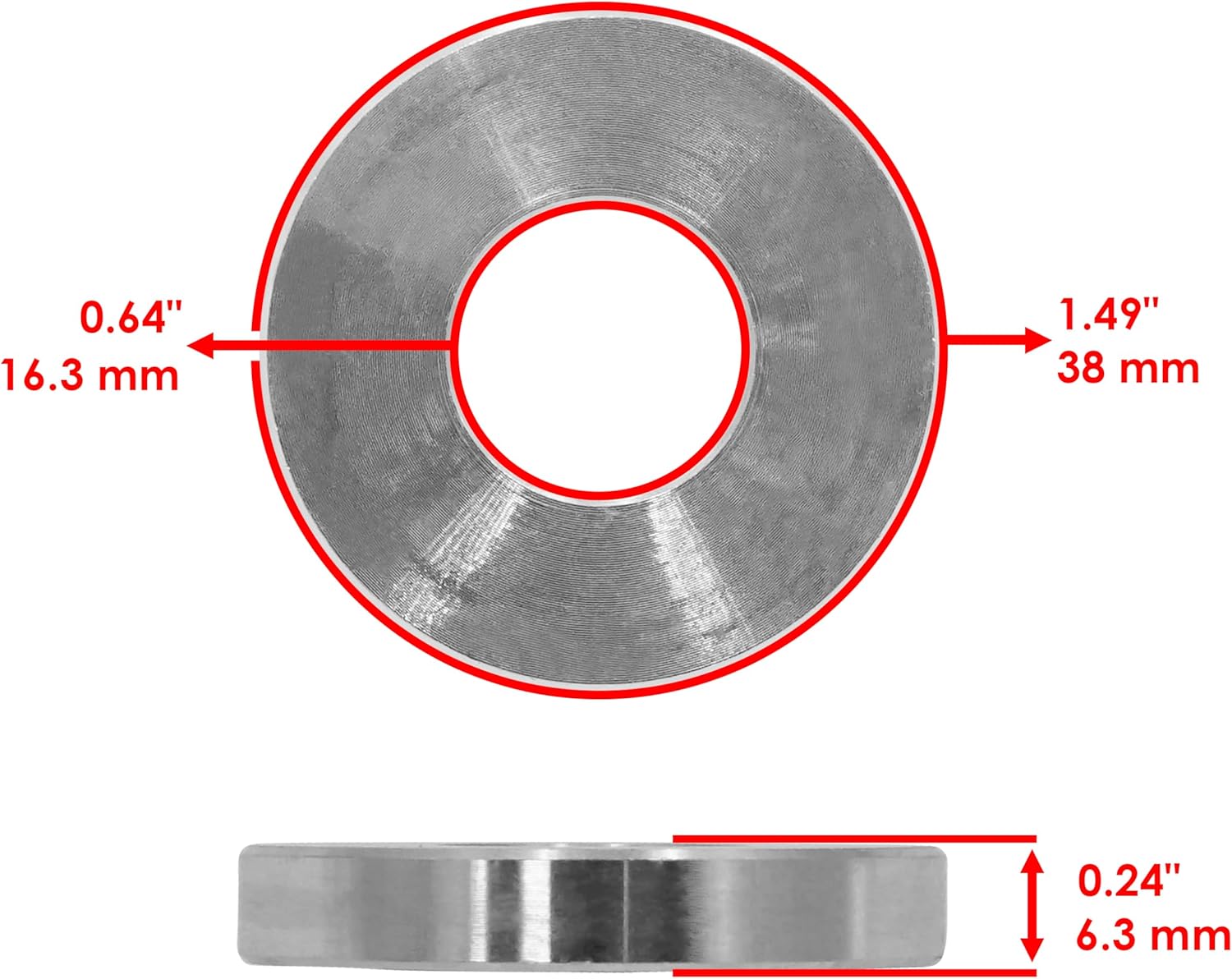

Compatible with Scag Models:Cougar Zero-Turn MowerSCR48-25CH 25hp Koh.(SN: 5590001 - 5599999)(SN: 6460001 - 6469999)(SN: 7540001 - 7549999) 48"SCR48-27KA 27hp Kw. (SN: 6450001 - 6459999)(SN: 7550001 - 7559999) 48"SCR52-25CH 25hp Koh. (SN: 6480001 - 6489999)(SN: 7560001 - 7569999) 52"SCR52-27KA 27hp Kw. (SN: 7160001 - 7169999)(SN: 7570001 - 7579999) 52"Part NUmber & Dimensions:Spindle Assembly: 41001, 41007, 41008, 461663, 46631Height: 184mm - 7.25 inOuter Diameter: 132.3mm - 5.2 inMounting Hole Distance: 115mm - 4.45 inMaterial: Cast IronWeight: 7lbs 6ozPulley: 48127, 482744, 48924, 48924MA760136, 48168-01, 48378-02Width: 22.7mm - 0.89 inInner Diameter: 39.5mm - 1․55 inOuter Diameter: 146.2 mm - 5.75inWeight: 2 lbs 4.2ozTapered Hub : 48926, 48378-03Width : 31.7mm - 1.24 inInner Diameter : 28.7mm - 1.12 inOuter Diameter : 63.43mm - 2.49 inBolt Length: 30.45mm - 1.19 inMaterial: SteelSpacer: 43592, 04041-03, 43278Width : 6.3mm - 0.24 inInner Diameter: 16.3mm - 0.64 inOuter Diameter: 38mm - 1.49 in

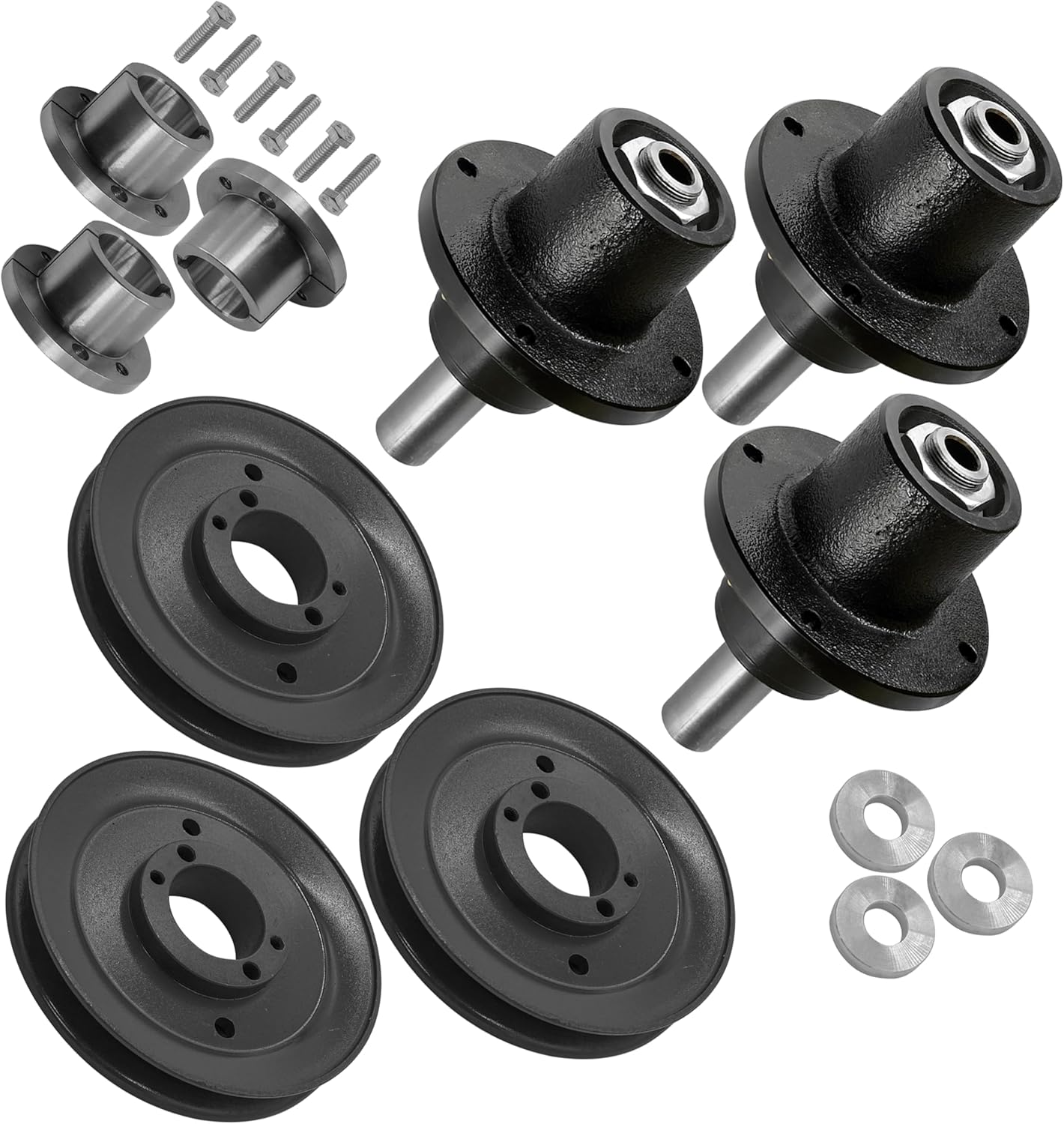

- Order Includes: 3 x Spindle Assembly, 3 x Idler Pulleys, 3 x Tapered Hub, 3 x Spacer
- Compatible with Scag SCR48-25CH, SCR48-27KA, SCR52-25CH, SCR52-27KA
- Part Number: Spindle Assembly: 41001, 41007, 41008, 461663, 46631
- Pulley: 48127, 482744, 48924, 48924MA, 760136, 48168-01, 48378-02
- Tapered Hub : 48926, 48378-03, Spacer: 43592, 04041-03, 43278
| Manufacturer | Caltric |
|---|---|
| Product Dimensions | 8 x 5 x 8 inches |
